HTB - T-Bolt Clamp

Features:

A safe, quick and simple way to clamp dies, work pieces and fixtures
Generous clamping stroke
High Clamp force at low operating pressure
Custom T-bolt configurations available

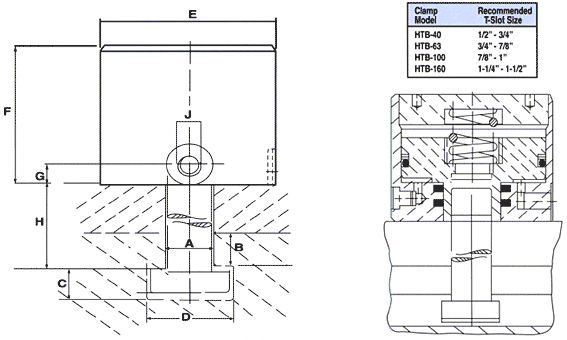

Dimensions
MEE specs

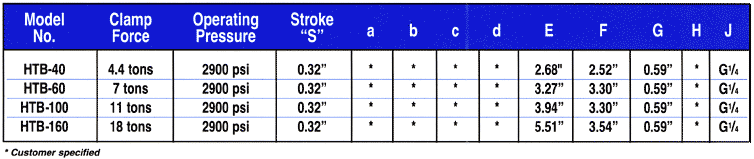

Technical Data

Operating Procedure (SD):

To Clamp

Visually inspect clamp and T-bolt-for obvious defects. Clean off any debris or chips that may be in the T-slot or on the die shoe surface.

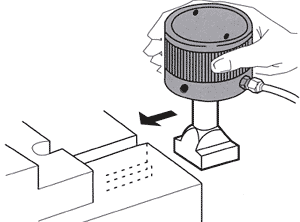

Place clamp and T-bolt into T-slot.
Push clamp and T-bolt assembly forward (toward die) as far as possible to ensure proper seating. Make certain that the die shoe surface is free of debris and lubricants.
Activate hydraulic system.
Monitor hydraulic pressure during press operation.

Ordering Information

When ordering or requesting a quote, please take a few minutes to complete the following data sheet.

Necessary Data
Range of die shoe thickness: ________ min. ________ max.
Press tonnage: ________
Weight of dies: ________ top ________ bottom
Clearance between ram and bolster (shut height): ___________
T-Slot Dimensions
If standard: ________
If non-standard:
  Width of throat (A) _______
  Depth of throat (B) _______
  Width of head (C) _______
  Depth of head (D) _______
