ROLLBLOC T-SLOT 18, DIN 650
RECTANGULAR SLOT 18x30 Order Code D18...

ROLLBLOC Die Lifters with Spring Pressure

Explanatory order information

  1. Preliminary remarks on allocation planning
    The slot size is generally defined. The relatively heaviest die serves as the basis for allocation planning. The load bearing capacity of the load carrying elements is dependent on their shape (ball, rollers) and the type of pressure system (spring, hydraulic).
  2. Die dimensions
    There are a corresponding number of load carrying points per runway (underside of die base plate) for a defined die length (in rolling direction).
  3. Load bearing capacity
    The table Load bearing capacity indicates how many table slots are to be equipped with ROLLBLOC die lifters in order to achieve the necessary load bearing capacity based on a defined die length.
    Any interruptions in the runway at the die base plate must be taken into consideration.
    The die with the small/short base plate can turn out to be the relatively heaviest die.
  4. Type list
    The standard versions are detailed in the Type list. The lengths are based on typical press table formats. ROLLBLOC die lifters can be supplied with any number of load carrying elements on request.
    The order code is to be completed according to the specific version.
    For this purpose, please use the detailed information provided on the fold-in flap Order designation.

Dimensions

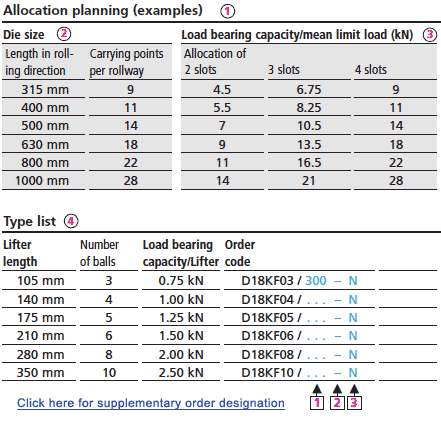

ROLLBLOC Ball Version Die Lifters Order code ...K...

Spring Pressure



Allocation planning (examples)

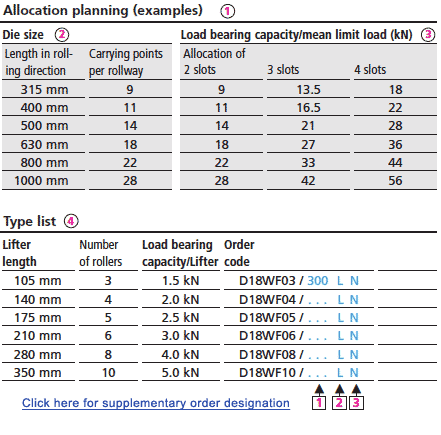

ROLLBLOC Roller Version Die Lifters Order code ...W...

Spring Pressure



Allocation planning (examples)

ROLLBLOC Die Lifters with Hydraulic Pressure

Explanatory order information

Only ROLLBLOC roller version die lifters are suitable for overhead installation.

Special ROLLBLOC T-version die lifters should be used for the purpose of crossing over table recesses (bridge function).

If necessary, for production purposes, these die lifters can be removed from the table slot. They are disconnected from the hydraulic system by means of a quick-release coupling.

Dimensions



ROLLBLOC Ball Version Die Lifters Order code ...K...

Hydroulic Pressure



Allocation planning (examples)

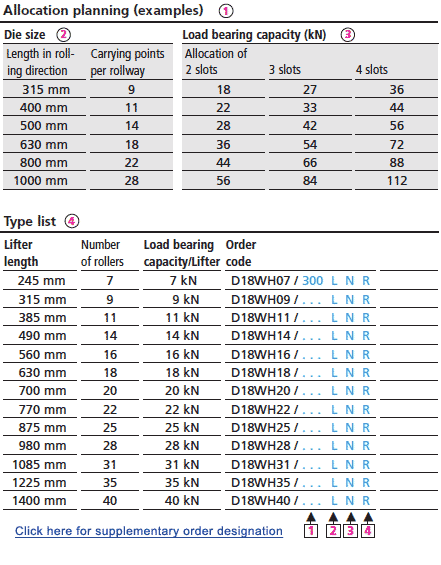

ROLLBLOC Roller Version Die Lifters Order code ...W...

Hydroulic Pressure



Allocation planning (examples)
