ROLLBLOC Table Inserts

ROLLBLOC Hardened Strips

Hardened To be glued into the die base plates to reduce rolling friction on the die side Supplied in pairs. Length: as requested (max. 2500 mm)



Dimensions

Type 50 mm (LF 5...)
for load carrying roller or ball element with defined movement

Type 80 mm (LF 8...)
for ROLLBLOC ball version die lifters, without defined guiding of the die

Diagram


ROLLBLOC Ball Inserts Order code ...K...

icon
With spring pressure Order code ...F...
Load carrying element: Ball
Die lift f = 1.5 mm

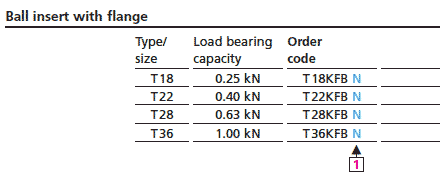

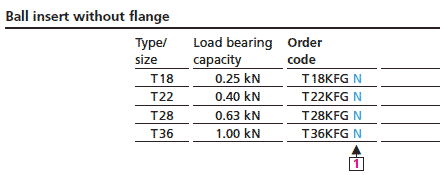

Ball insert without flange Ball insert with flange

Supplementary order information for possible high temperatures
N = normal temperature max. 80° C
H = high temperature max. 200° C


Roller IinsertsROLLBLOC Roller Inserts Order code ...W....

icon
With spring pressure Order code ...F...
Load carrying element: Roller
Die lift f = 1.5 mm

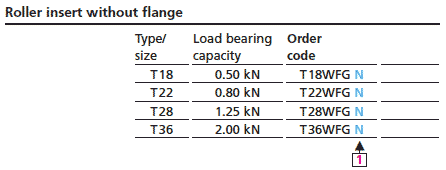

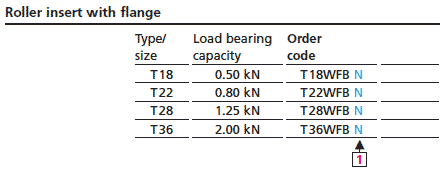

Ball insert without flange Ball insert with flange

Supplementary order information for possible high temperatures
N = normal temperature max. 80° C
H = high temperature max. 200° C



Holes for ROLLBLOCK table inserts
Holes for ROLLBLOC table inserts
With this design existing holes for drawing pins can be used.

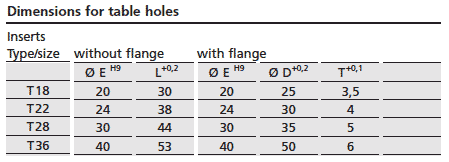

Dimensions for table holes
