MDA - Power Clamping Nut

The salient design feature of the series MDA is an integral transmission gear for the multiplication of the manual tightening torque. With this, the user has a sturdy and flexible clamping element, which enables highest clamping forces with simple manual operating and maximum operating safety. The Series MDA is a through hole thread and sidewise staggered hexagon design. The power clamping nut can be used for various clamping tasks throughout the machine tool industry, particularly for the clamping in presses and punches.

MEE



Features:

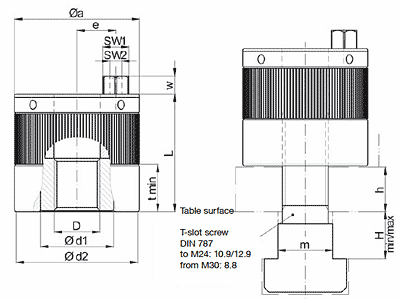

Technical data and dimensions [mm]: length dimensions according to DIN ISO 2768 mHTechnical Data and Dimensions

* Property class of threaded bolt up to M 24 minimum Q 10.9; from M 30 Q 8.8
(further thread sizes i. e. inches on request) max. allowed temperature range: -30°C up to +200°C



Ordering Example
