MCG - Power Clamping Nut

Features:

• Threaded pin
• Function as power clamping screw
• Centered operation
• Compact design

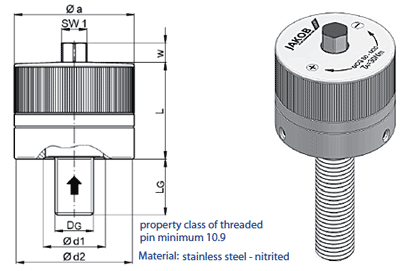

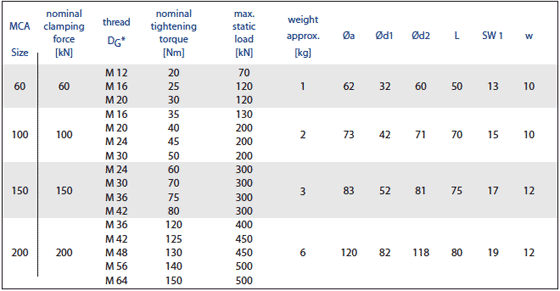

Technical data and dimensions [mm]: length dimensions according to DIN ISO 2768 mH

length of threaded pin LG = variable (according to customer information)

* further thread sizes i. e. inches on request
max. allowed temperature range: -30°C up to +200°C
